GM 5.7L, 5.0L, 7.4L V8 Bypass Oil Filter
GM 5.7 / 5.0 / 7.4 V8 Bypass Oil Filter Kit
Designed for compatible GM 5.7L, 5.0L, and 7.4L V8 engines, this kit provides progressive 3-stage filtration down to 1 micron to help control oil contamination, reduce engine wear, and support longer engine life.
Parts Included in This Kit

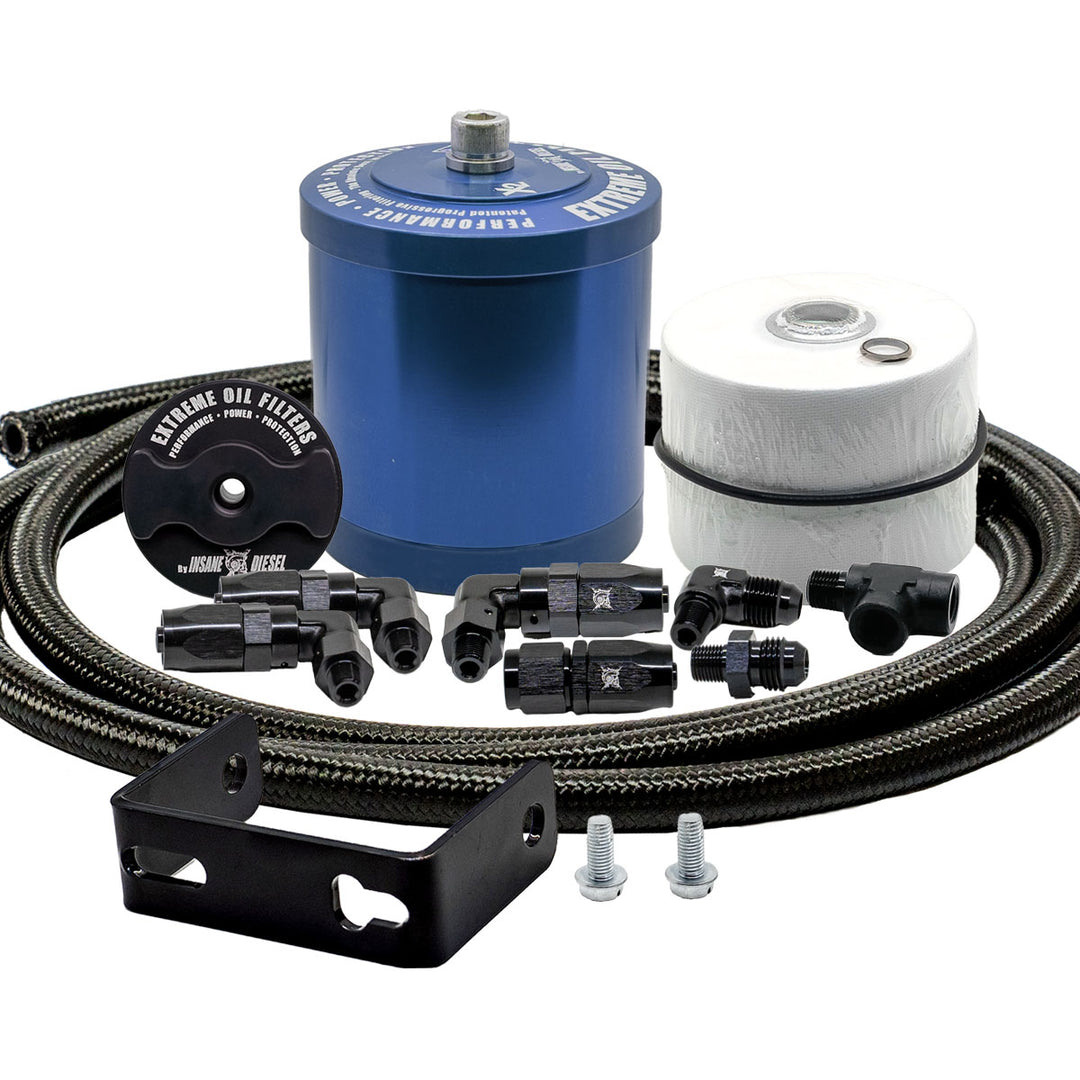

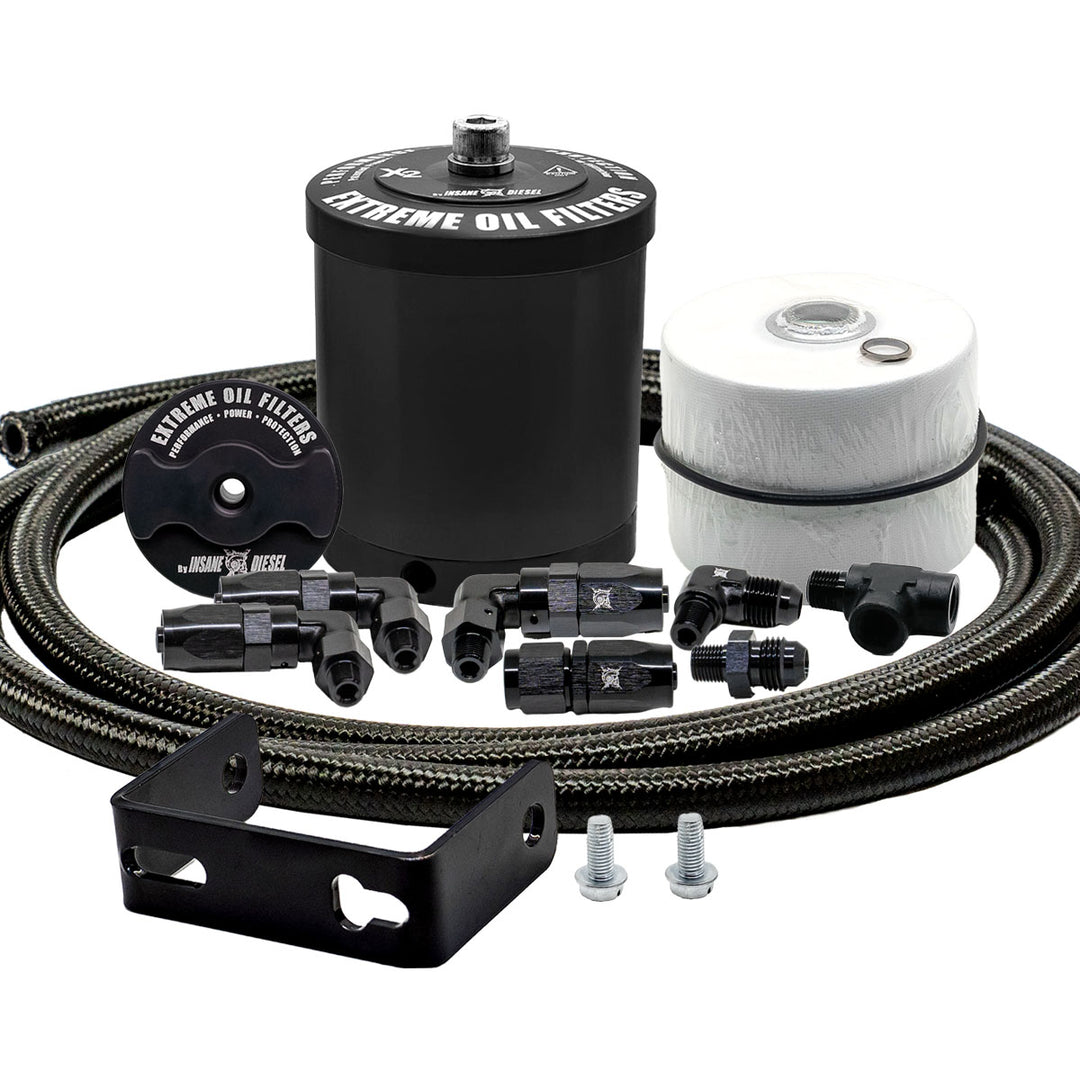

- 1 EXTREME1 bypass oil filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
- 1 EXTREME1 filter element (EX1ME) with O-rings (GX1/2)
- 2 In/Out fittings (AN06-04MS90)
- 10 ft of hose that can be cut to your preferred length (LW06BK)
- 1 Mounting bracket with hardware (ZBRCKX12)
Choose Your Pressure-Port Connection
Select one of the following pressure-port connection options for your installation.
Recommended Option
Sandwich Plate with Thread Extension Kit
Best for: Most customers, DIY installers, and professional shops.
Why choose it:
- Provides a direct pressure-side oil connection at the factory oil-filter location
- Avoids using the traditional factory pressure-port connection
- Creates a clean, application-specific connection point
- Matched sandwich plate and thread extender are designed to work together
- Recommended as the standard pressure-port choice for new installations
Premium Insane Diesel design:
- Dual-seal design: aluminum-to-aluminum sealing plus an O-ring
- Precision-machined T6 billet aluminum sandwich plate
- Black-anodized finish
- Custom Insane Diesel engraving
- Correctly matched stainless-steel oil filter thread extender
Includes:
1 Sandwich Plate with Thread Extender and fittings (AN06-02MP90) + (AN06-06FJ)
Important installation and maintenance requirements:
- During initial installation: Clean the thread extender, apply Blue Loctite 242 or an equivalent threadlocker, and torque the thread extender to 35 ft-lb.
- At every oil-filter change: Check that the thread extender is torqued to 35 ft-lb.
- If the sandwich plate is removed: Replace the O-ring before reinstalling the plate. Do not reuse the old O-ring.
Traditional Pressure-Port Option
The Tee Fitting System provides the traditional method of connecting the bypass oil filter to the engine’s factory pressure-port location.
- 1 Tee Fitting System (T18NPT) with fittings (AN06-02MP) + (AN06-06FJ)
Choose Your Return-Port Connection
Threaded Filler Cap Option (1998 and older)
- 1 Threaded filler cap (FLLCCO) with O-ring (OCC) and fitting (AN06-02MS90)
Twist-Lock Filler Cap Option (1998–2002)
- 1 Twist-lock filler cap (FLLCDUO) with O-ring (ODU) and fitting (AN06-02MS90)
Installation Information
• There is currently no official mounting location for this vehicle. Use our custom mounting guide for information about selecting and preparing a suitable mounting location.
• We also recommend reviewing all of our general installation guides before beginning installation.
BENEFITS OF ULTRA-FINE OIL FILTRATION
• Radically extend engine life up to 2X
• Reduce engine wear
• Keep oil up to 4X cleaner than new oil
• Progressive 3-stage filtration down to 1 micron without clogging or losing efficiency like other filters
• Reduce soot and carbon buildup
• Reduce erosion of hoses and seals
• Extend oil-change intervals
• Remove 99.9% of moisture
• Improve gas mileage
• Improve oil cooling
• Large housing holds 4,000X more contaminants than OEM filters
• Easy installation and maintenance
• 15,000 miles, or up to 25,000 miles with condition-based monitoring, 250 hours, or one year before maintenance is needed
• Oil analysis is recommended when extending oil and filter change intervals
