10L1000 Transmission Bypass Oil Filter Kit (Diesel & Gas Engines)

$664.99

Shipping calculated at checkout.

Housing Color

Black

Red

Blue

Oil Return Port Option

Standard Return

Aftermarket Return

Quantity

Shipping Notice: Due to high order volume, bypass oil filtration kits may take up to 10 business days to process before shipping.

For 2020–Present GM HD Trucks (Diesel and Gas Engines)

Built to protect the GM 10L1000 where factory filtration stops.
The GM 10L1000 10-speed automatic transmission relies on precise hydraulic control through solenoids, clutch-control valves, and a highly sensitive valve body. Even microscopic debris circulating in the transmission fluid can interfere with these components over time, contributing to erratic shifting, delayed engagement, and long-term wear.

The Insane Diesel 10L1000 Bypass Transmission Oil Filter Kit is engineered specifically for 2020-present GM HD trucks equipped with the 10L1000, providing continuous fine-particle filtration that the factory system is not designed to capture.

Parts Included In This Kit

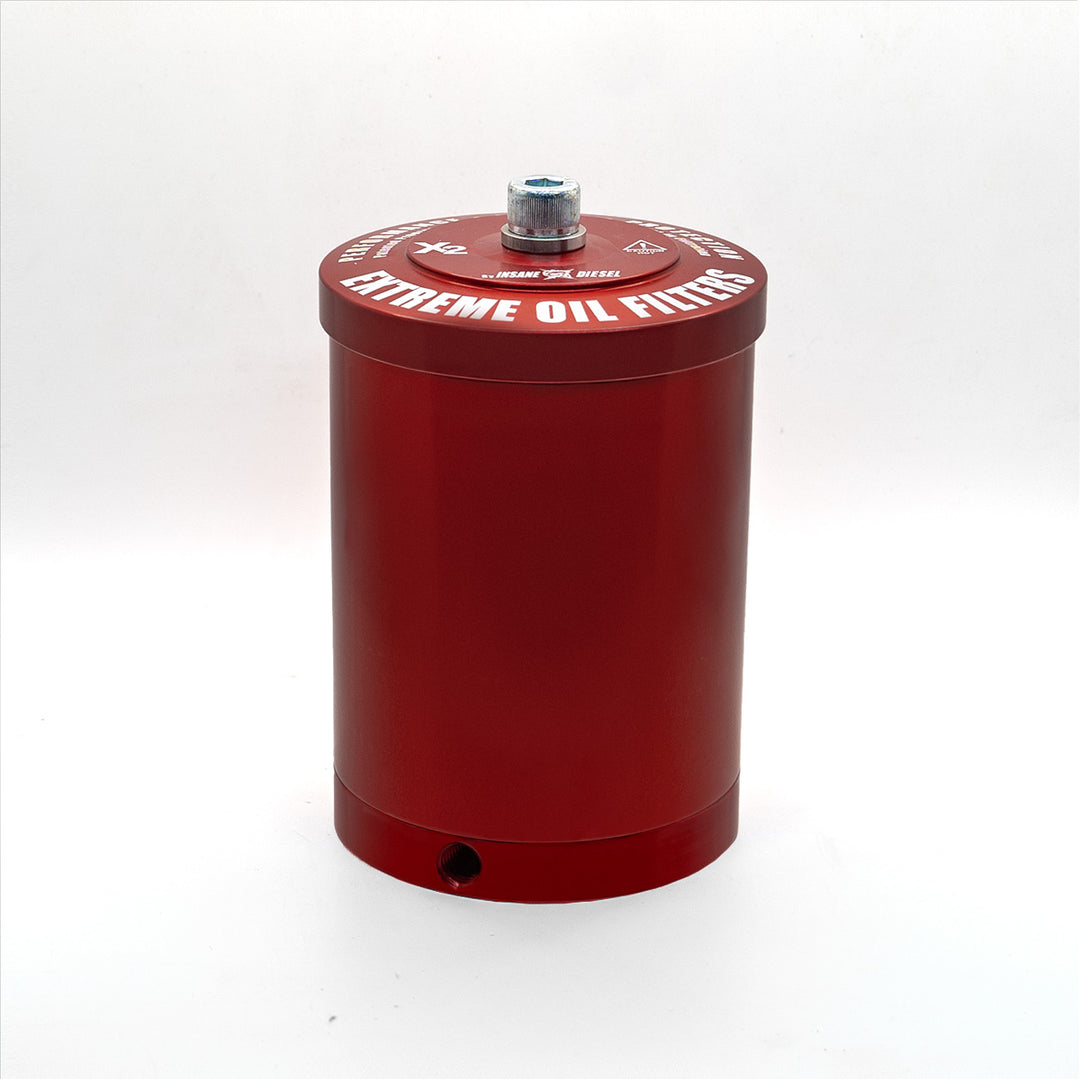

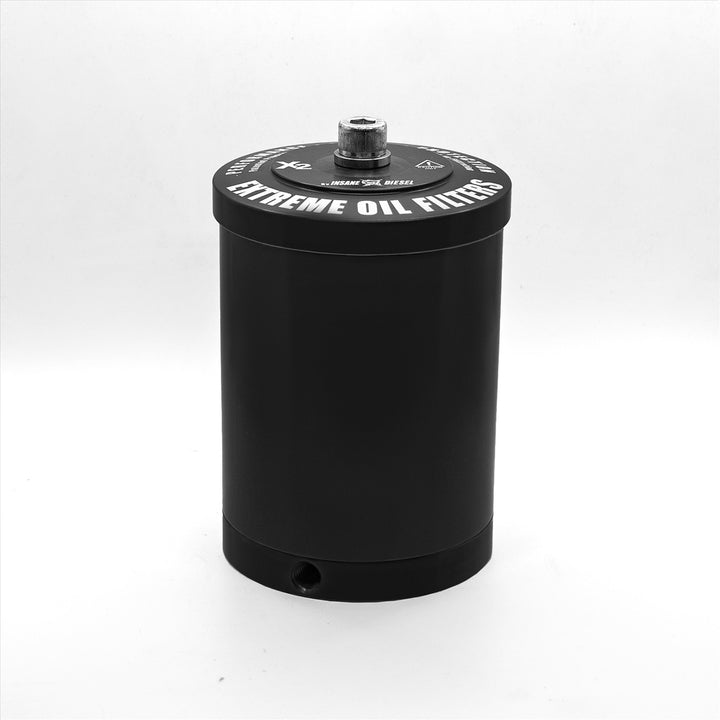

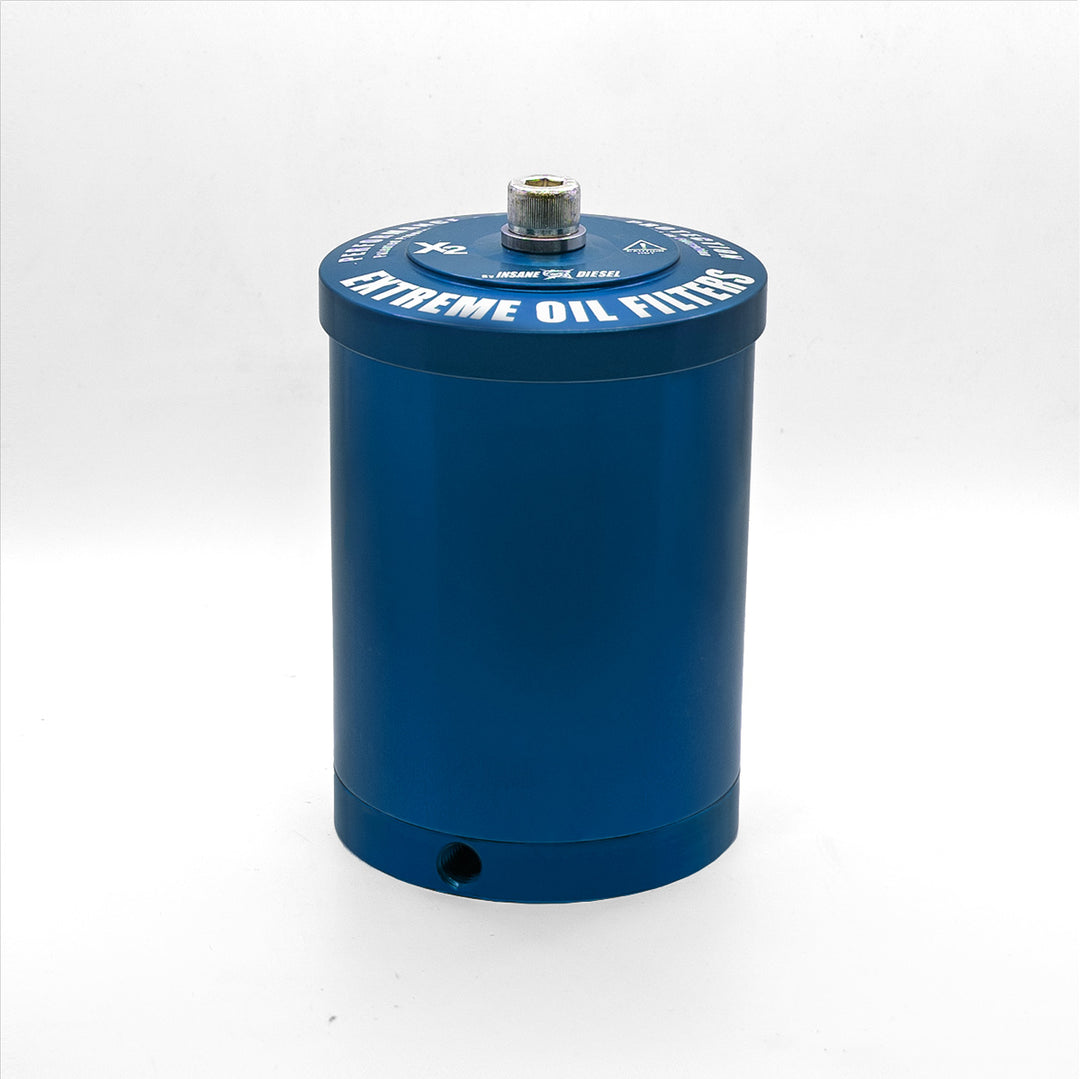

1 EXTREME 2 filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
1 EXTREME 2 filter element (EX2ME) with o-rings (GX1/2)
2 In/Out fittings (AN06-04MS90)
1 Mounting bracket (ZBRCKX12)

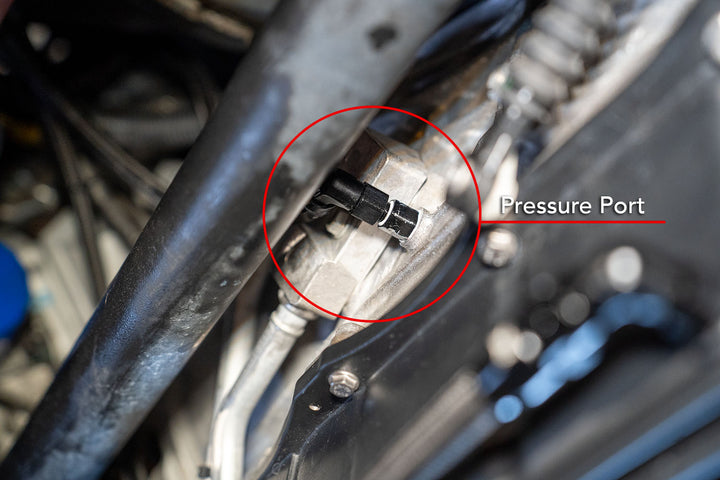

1 Pressure port fitting (1/8Orifice) + (AN06-02MS90)

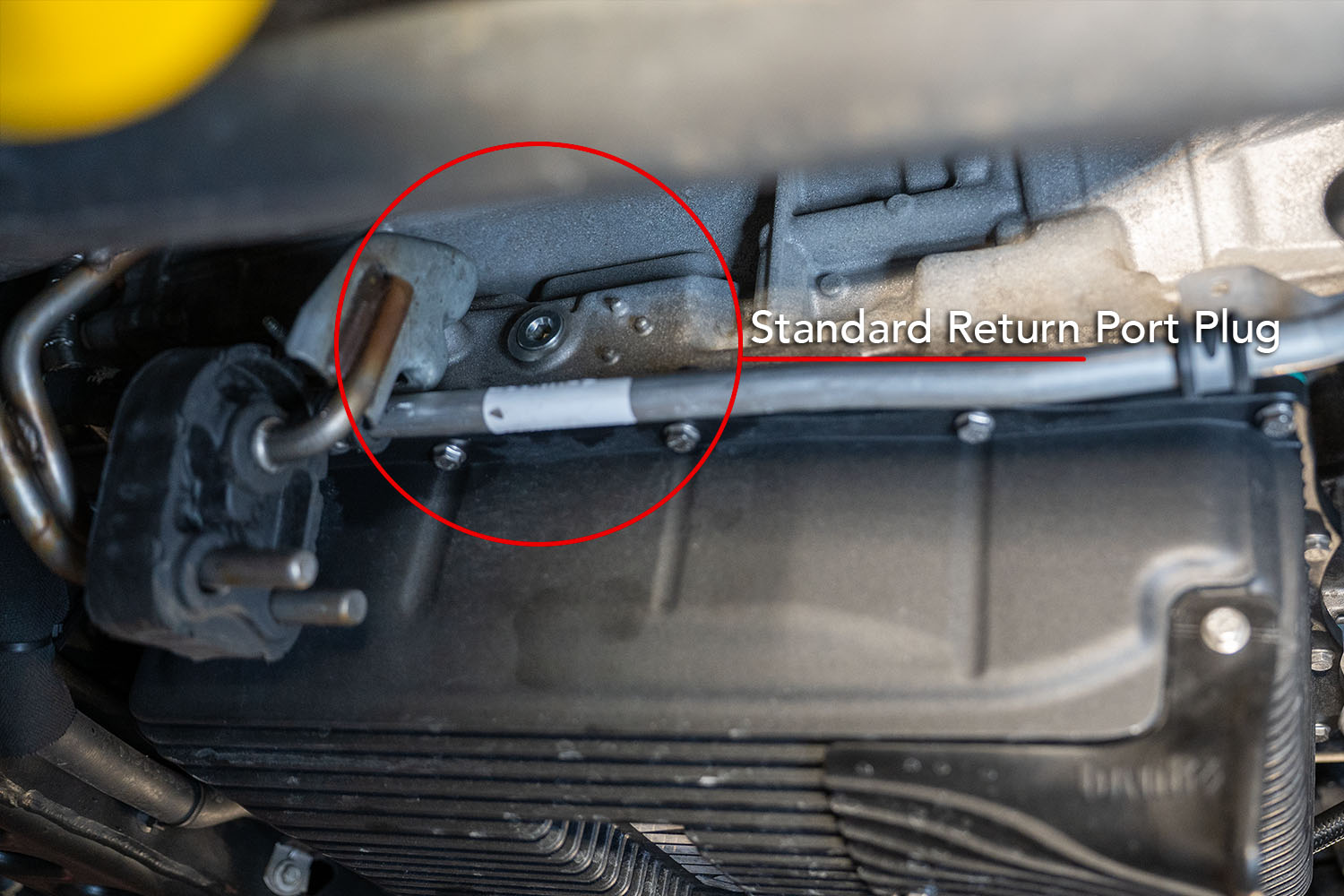

Standard Return Port Fittings
- 1 Return port fitting (AN06-06FJ90) + (AN06-18mmX1.5)
- 7ft hose to be cut to your preference (LW06BK)

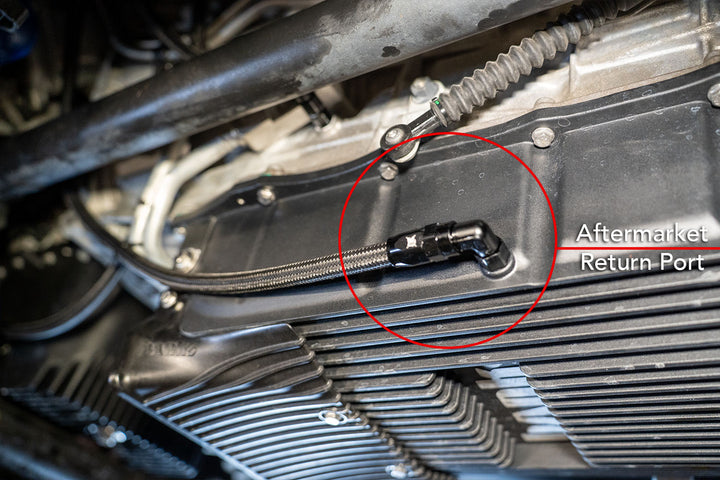

Aftermarket Pan Return Port
- 1 Return port fitting (AN06-02MS90)
- 6ft hose to be cut to your preference (LW06BK)
Designed exclusively for the GM 10L1000

This kit is built for:
• 2020–Present Chevrolet Silverado 2500HD & 3500HD
• 2020–Present GMC Sierra 2500HD & 3500HD
• Engines: 6.6L Duramax Diesel (L5P) and 6.6L Gas (L8T)
• Transmission: GM 10L1000 only

Installation Guide
