10R140 Transmission Bypass Oil Filter Kit (2020-2026)
Pre-order now to secure current pricing. This item is expected to ship between April 13–17, 2026, or sooner.
10R140 Transmission Bypass Oil Filter Kit (2020-2026)
Engineered to protect the Ford 10R140 transmission where factory filtration ends.
The Ford 10R140 10-speed heavy-duty automatic transmission relies on extremely precise hydraulic control through shift solenoids, clutch-control valves, and a highly sensitive valve body. Over time, microscopic wear debris and fine particulate contamination circulating in the transmission fluid can interfere with these components—contributing to harsh or erratic shifts, delayed engagement, and accelerated internal wear.
The Insane Diesel 10R140 Bypass Transmission Oil Filter Kit is engineered specifically for 2020–present Ford Super Duty trucks and other gas engines equipped with the 10R140 transmission. It provides continuous fine-particle filtration beyond what the factory system is designed to capture, helping reduce contamination load and support long-term transmission reliability under heavy towing, high load, and extended service conditions.
Parts Included In This Kit
- 1 EXTREME2 filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
- 1 EXTREME2 filter element (EX2ME) with o-rings (GX1/2)
- 2 In/Out fittings (AN06-04MS90)
- 1 Mounting bracket with hardware (ZBRCK)

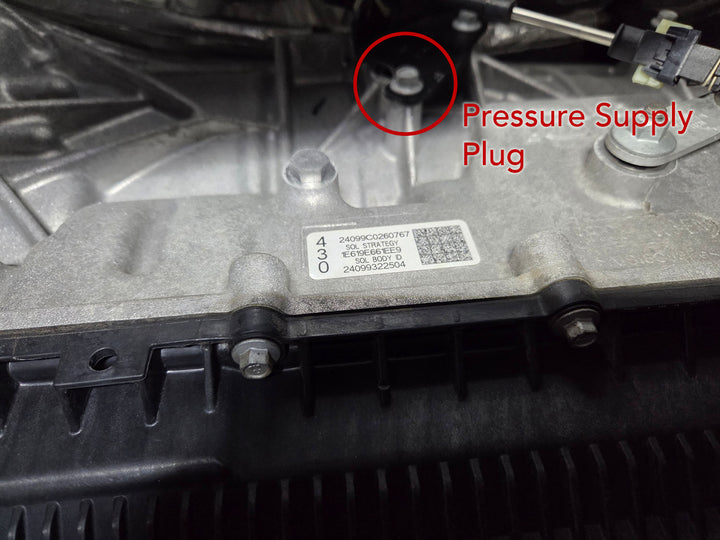

- 1 Pressure port fitting (AN06-10mmx1.0) + (AN06-06FJ90)
- 1 1/4 Orifice (1/4npt restrictor with 1mm port. (Restricts 120 psi to 1.25 gpm)
Oil Return Options:

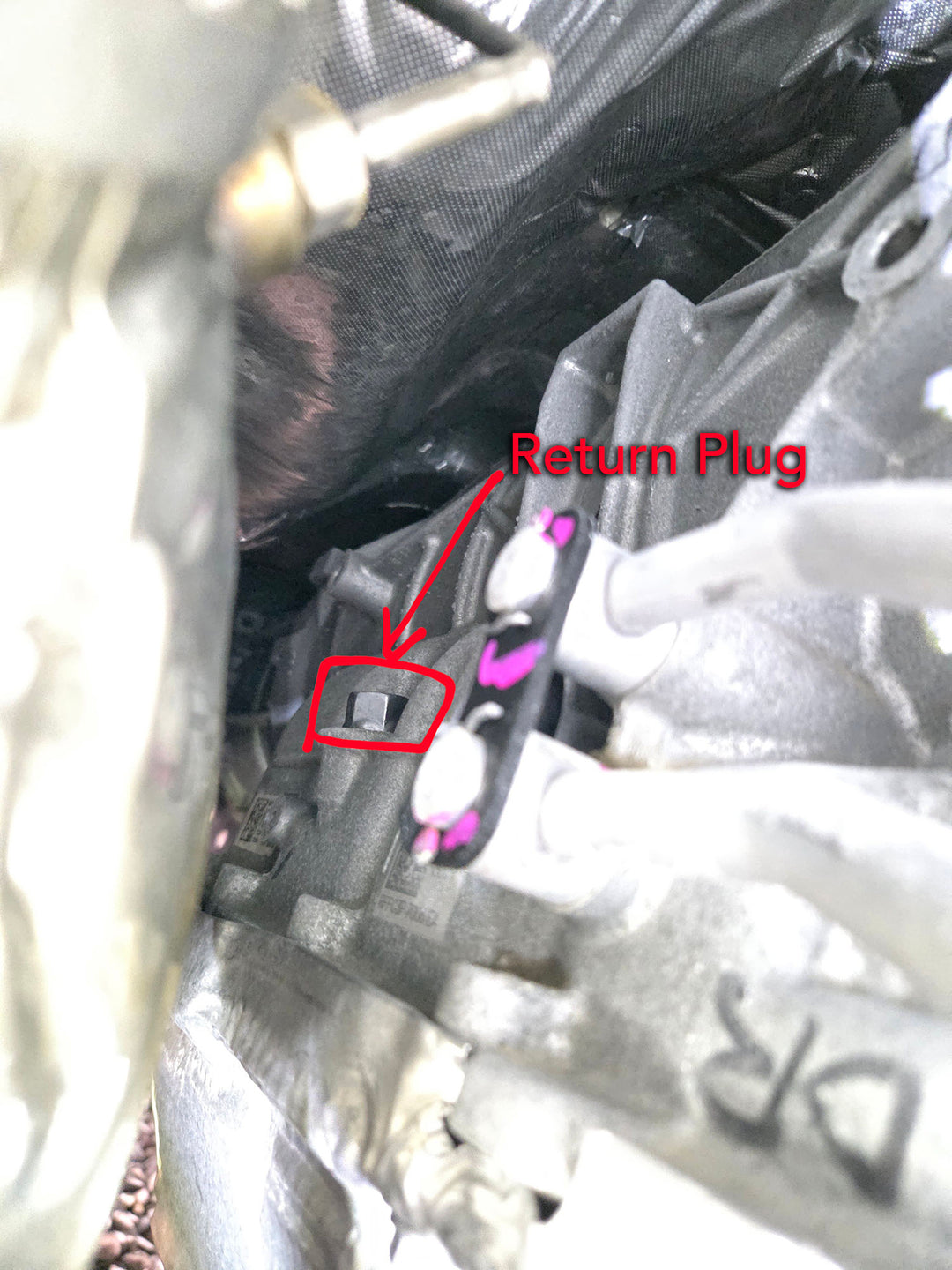

• Stock Oil Return Pan
- 1 (AN06-18mmx1.5) + (AN06-06FJ90)
- 8ft hose to be cut to your preference (LW06BK)
• Aftermarket Banks or PPE Transmission Pan Oil Return *Purchase Separately
Compatible with Banks 35165-B or the PPE Transmission Pan Part #328053510
- 1 Return fitting (AN06-02MS90)
- 8ft hose to be cut to your preference (LW06BK)
Application: Ford (2020-Present) Equipped with 10R140
- Ford F-350 Super Duty
- Ford F-450 Super Duty
- Ford F-550 Super Duty
- Ford 7.3 (gas) Godzilla
- Ford 6.8 (gas) "Mini Godzilla" Super Duty
- Ford F-250 Super Duty
