Dodge 3.0L Ram 1500 EcoDiesel Bypass Oil Filter Kit

Regular price$954.79
/
Shipping calculated at checkout.

FILTER HOUSING COLOR
YEAR AND PRESSURE PORT OPTIONS
MOUNTING OPTIONS
* Orders may take up to 7 business days to process before shipping.

Dodge Ram 1500 EcoDiesel 3.0L Bypass Oil Filter Kit

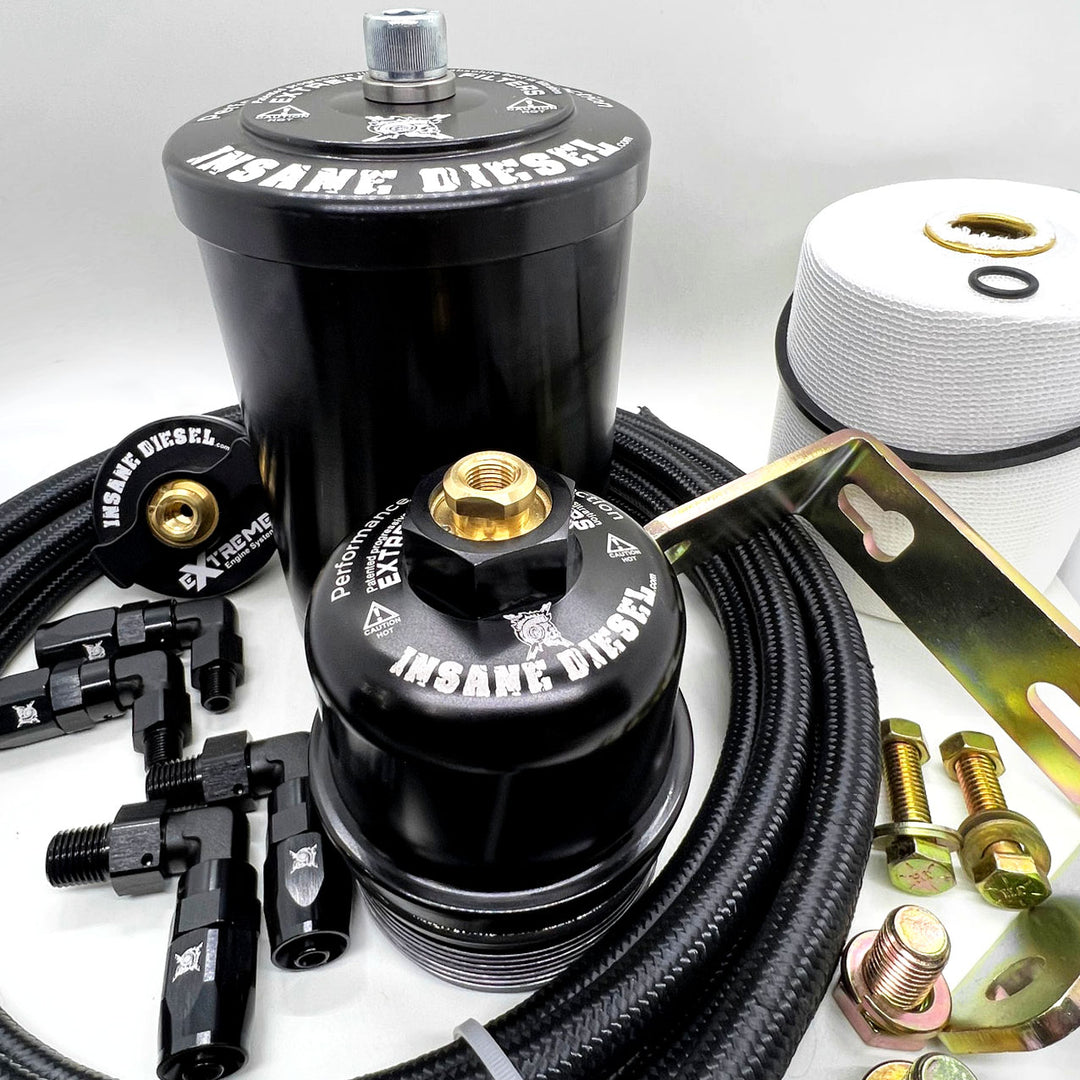

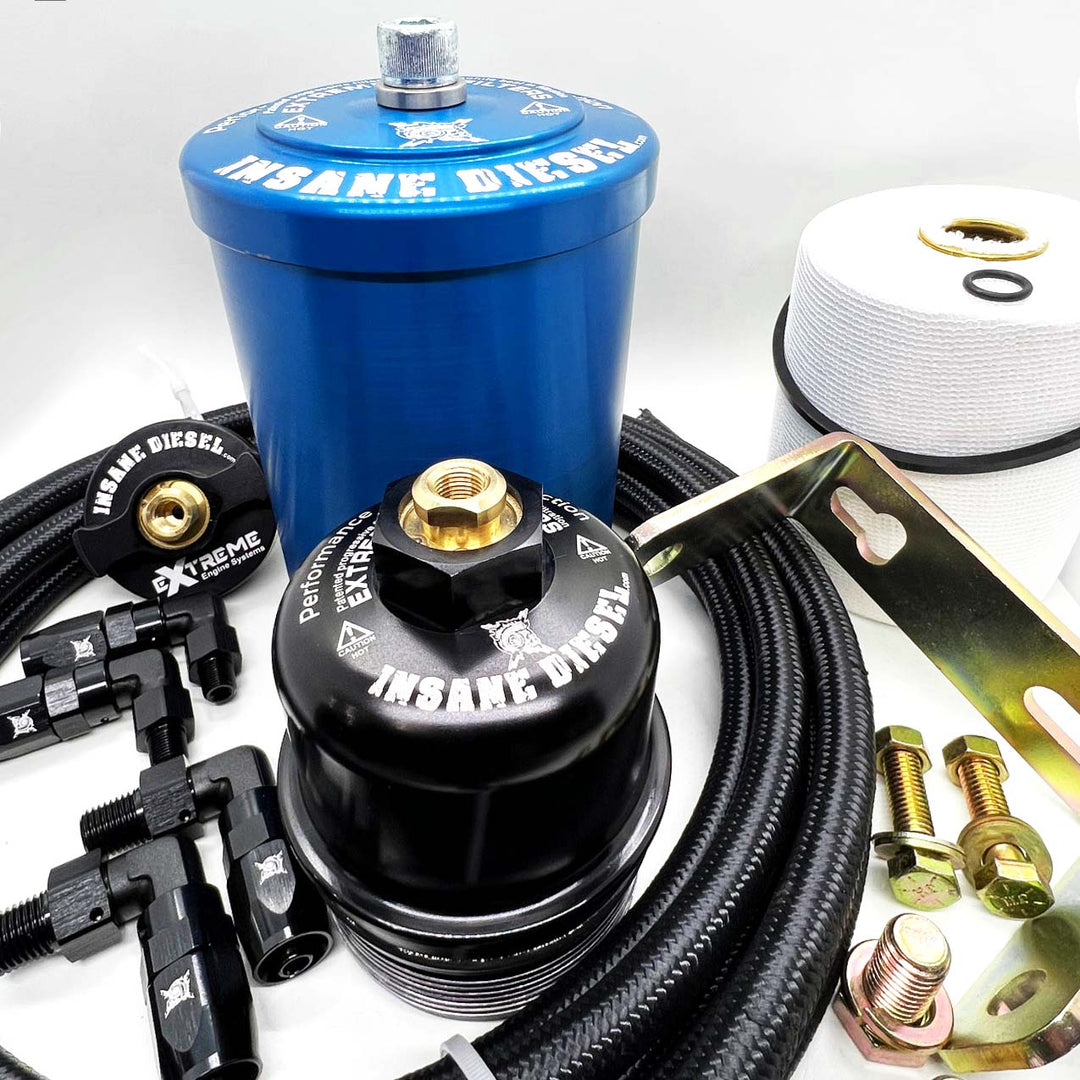

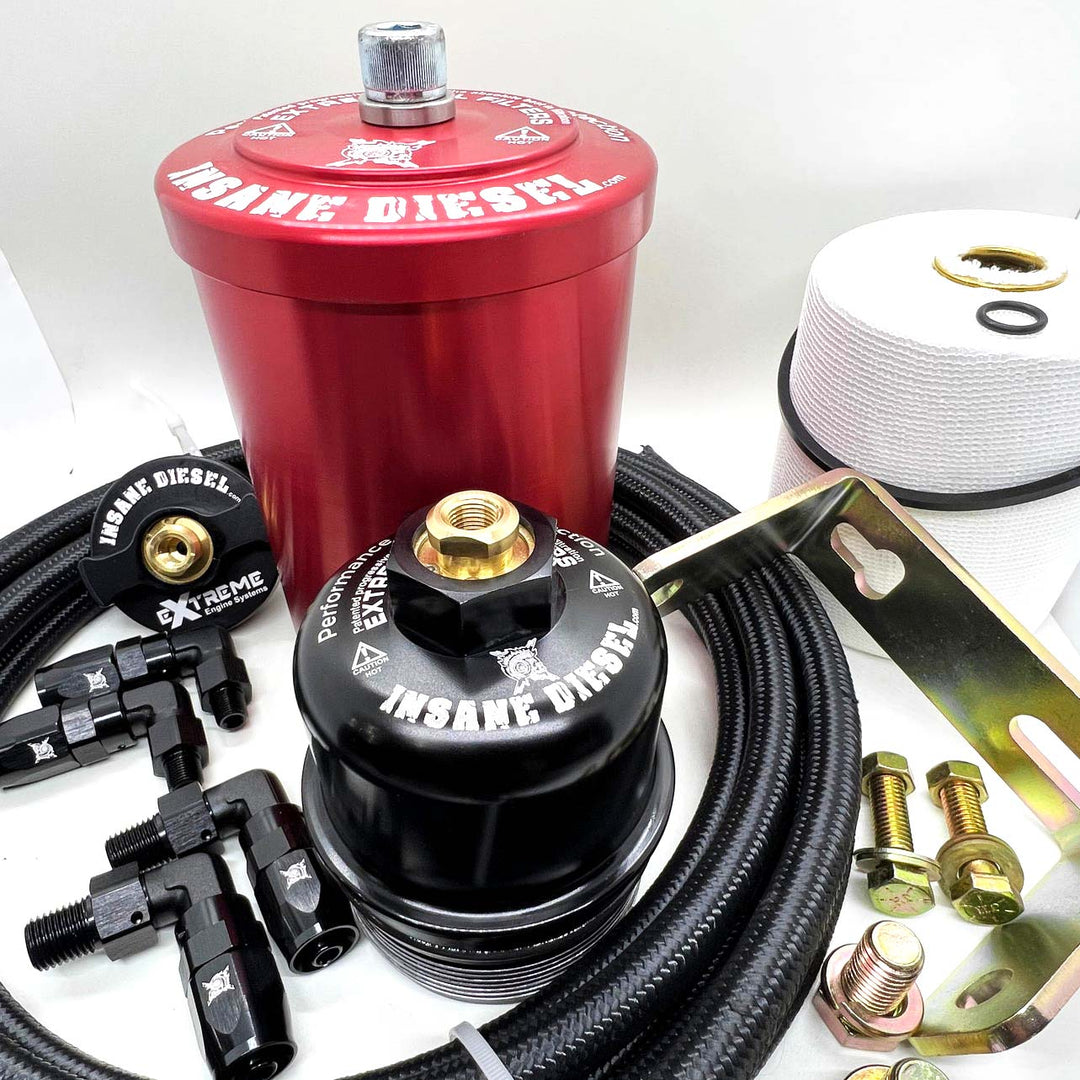

Parts Included In This Kit

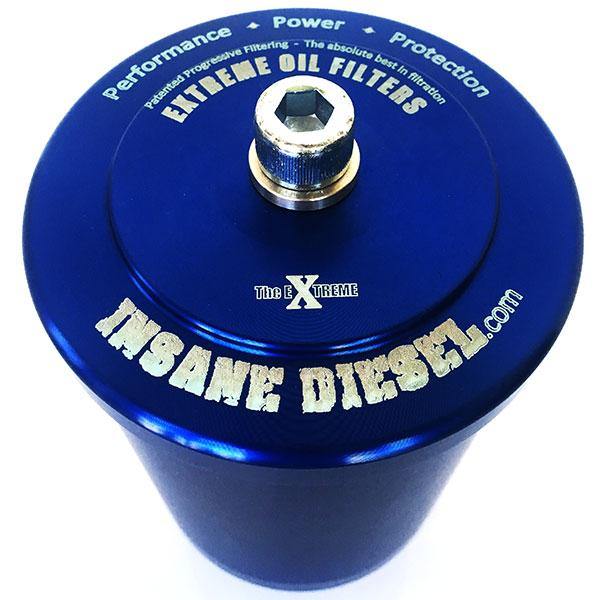

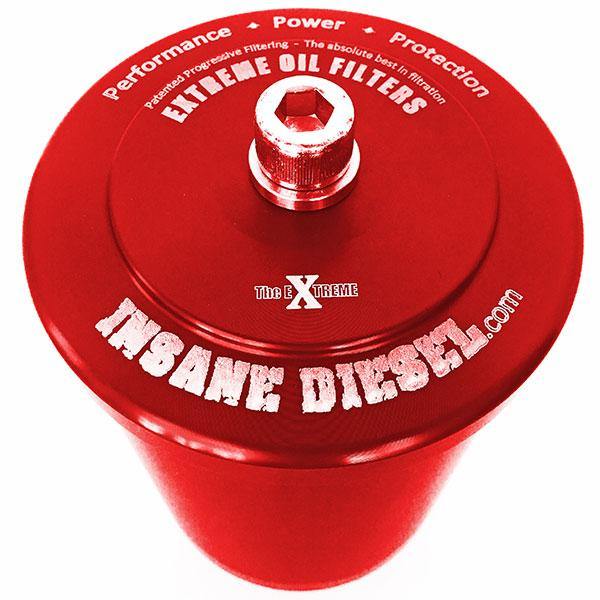

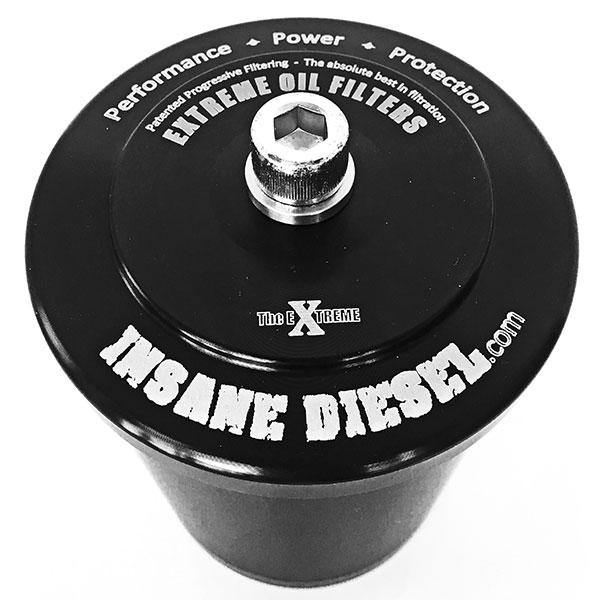

  • 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)

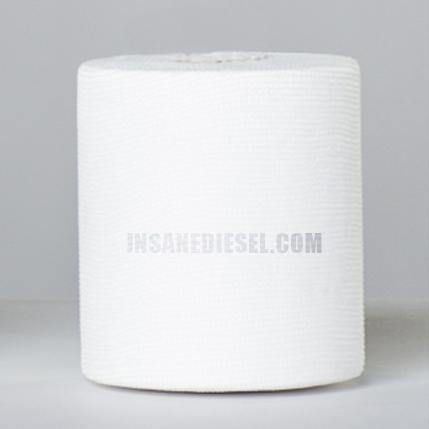

  • 1 EXTREME 2 filter element (EX2SE) with orings (GX1/2)
  • 2 In/Out fittings (AN06-04MS90)

Pressure Port Option – 2014–2019

  • 1 Tee fitting system (T1010B) with washer (D10) and fittings (AN06-02MP90 + AN06-06FJ)
  • 1 Filter cap (PCED30) with fitting (AN06-02MS90)

Pressure Port Option – 2020 and Newer

  • 1 Tee fitting system (TM1415B) with washer (D14) and fittings (AN06-02MP90 + AN06-06FJ)
  • 1 Filter cap (PCED30) with fitting (AN06-02MS90)

Return Port

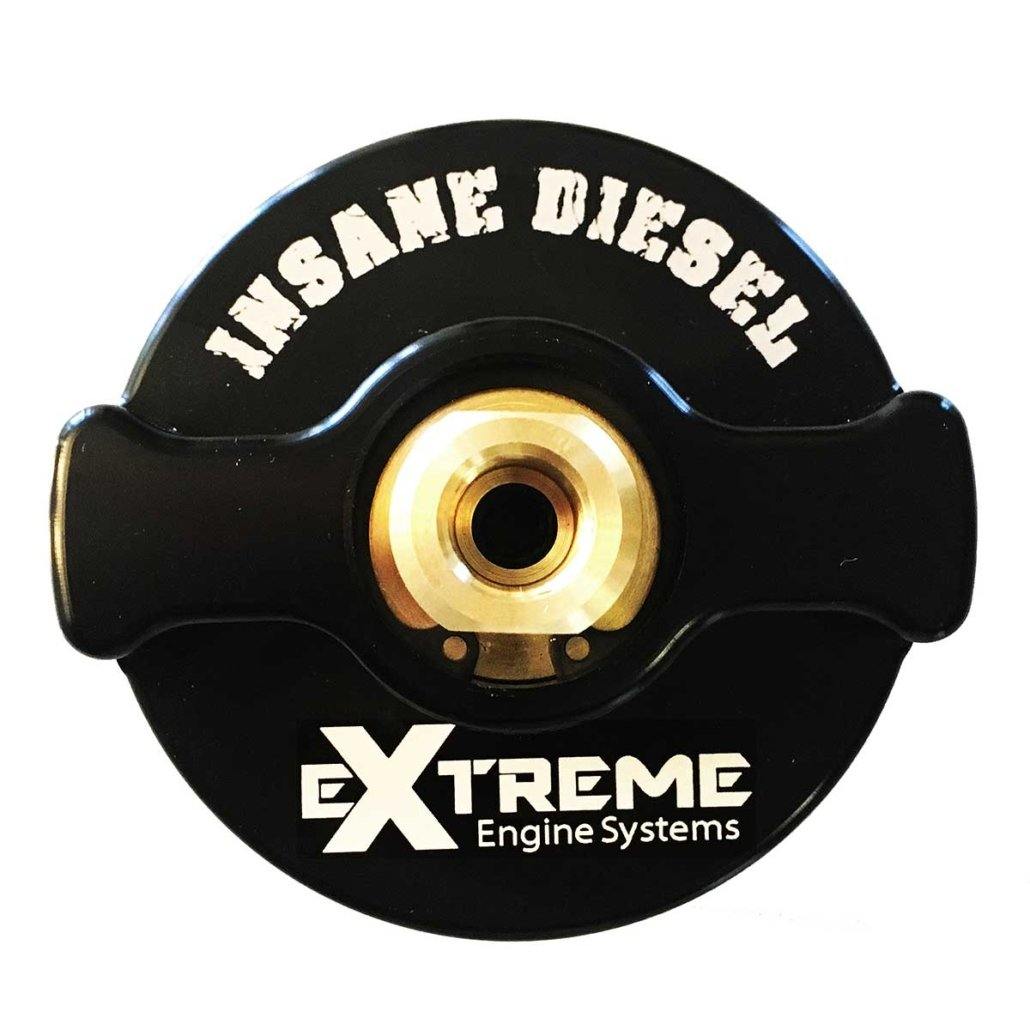

  • 1 Oil filler cap (FLLCEDO) with oring (OED) and fitting (AN06-02MS90)
  • 9ft of hose to be cut to your preference (LW06BK)

Bracket Options

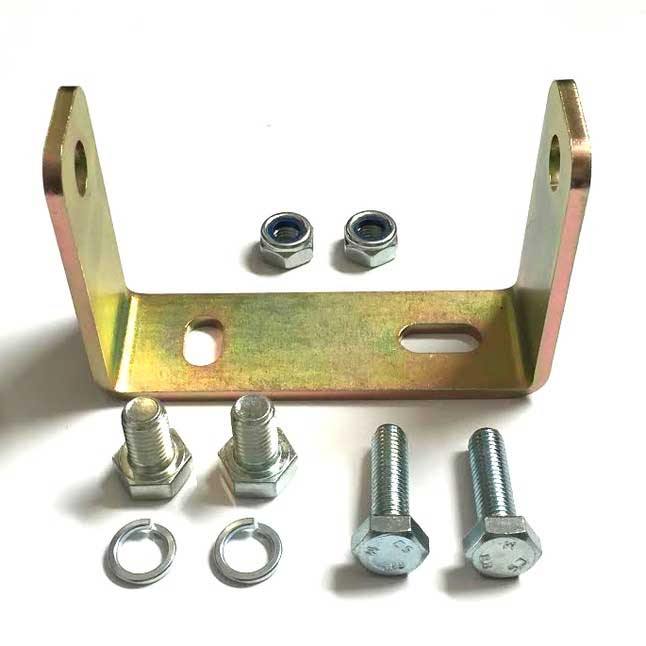

  • 1 Suspension mounting bracket and bracket hardware (ZBrckX12)
  • 1 Under the hood bracket (UTH-E)

Important Notes Regarding GEN4 and GEN5 Compatibility:

  • Must use the following filters with our oil pressure cap:
    • Mopar Filter part #68492616AA
      K and P Filter S91
  • Our filter cap w/ pressure ports is compatible with ALL EcoDiesel 3.0 engines (even 2020+ models), but you must snap in a 2014-2019 stock filter  with our filter cap (even for newer 2020+ models). Don't forget to place the o-ring that comes with new stock filter on our filter cap too.

  •  Owners of 2020-Newer models now have the option to select the tee fitting pressure port, which gains access to the oil pressure supply through your vehicle's oil pressure sensor.
  • The Suspension mount option is not compatible with engines that have air suspension cable. The "under the hood" bracket is recommended for this type of vehicle.

  • Under-the-hood bracket mount requires modification to the bracket: cutting, drilling, trimming of the vinyl cover, and bolts. Watch this video to see a fan made description of this mounting location

Installation Guide:

Installation Guide PDF

IMPORTANT: Do not exceed the torque specs:
• Tapered fittings torque specs: do not exceed 10ft lbs to 12ft lbs.
• Straight fittings torque specs: do not exceed 60 in lbs

Mounting Examples:

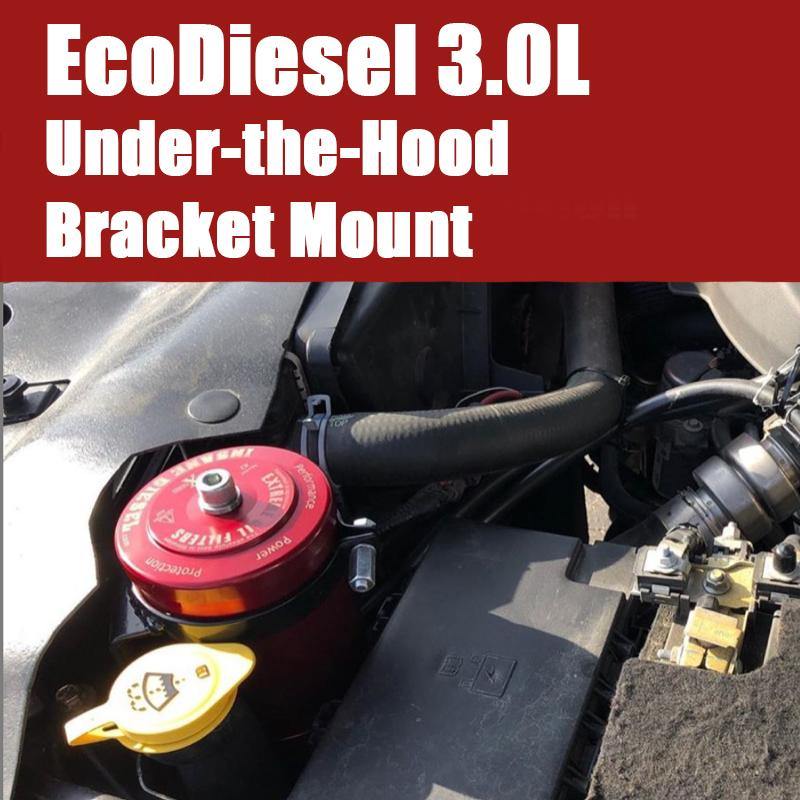

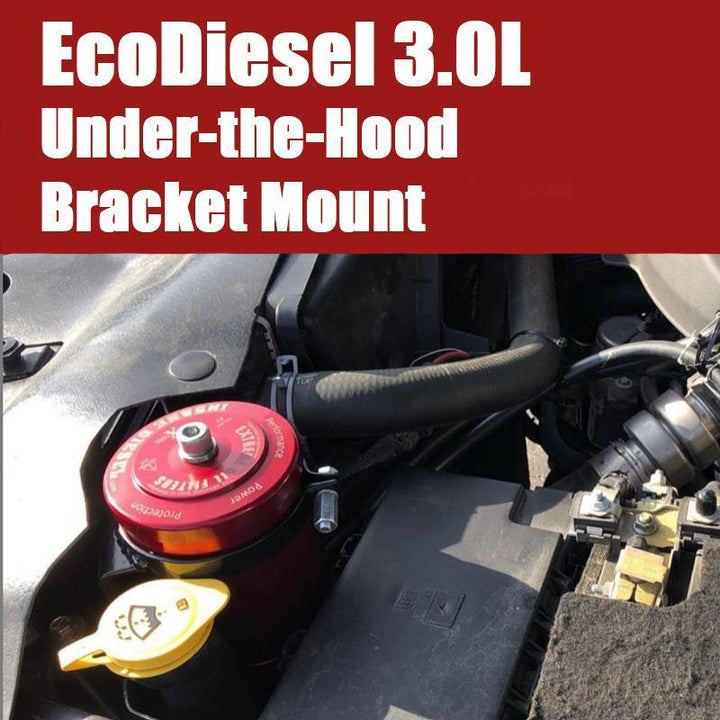

Under-the-hood bracket mount: watch example video

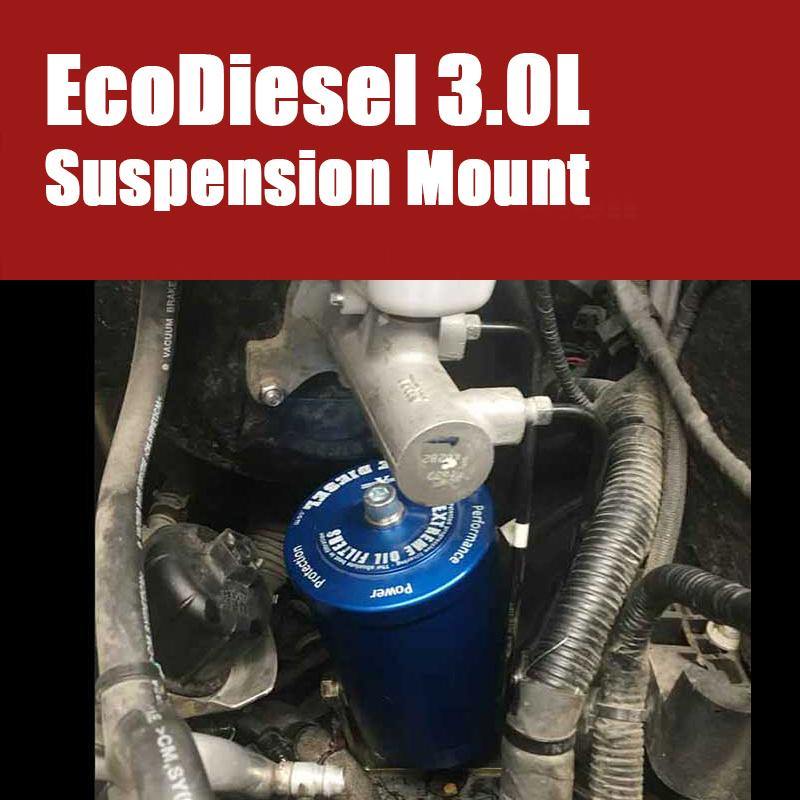

Suspension mount:


BENEFITS OF ULTRA-FINE OIL FILTRATION

• Radically extend engine life 2X
• Reduce engine wear
• Keep oil up to 4X cleaner than new oil
• Progressive 3 stage filtration down to 1 micron, won't clog or drop efficiency like others filters
• Reduce soot and carbon buildup
• Reduce erosion of hoses & seals
• Extend oil change intervals
• Remove 99.9% of moisture
• Improve gas mileage
• Improve oil cooling
• Large housing holds 4000X more contaminants than OEM filters
• Easy installation and maintenance
• 15K (or up to *25K miles) 250 hours, or 1 year before maintenance is needed
• *Condition based oil analysis monitoring recommended when extending oil/filter change intervals

 Learn More About the EXTREME Bypass Oil Filter System Here


Installation/assembly required by professional mechanic
