10R80 transmission Bypass Filter Kit (2017+) Ford F150’s
10R80 TRANSMISSION BYPASS FILTER KIT
Engineered to protect the Ford 10R80 transmission where factory filtration ends.
The Ford 10R80 10-speed automatic transmission relies on clean, stable fluid to protect the precision hydraulic components that control shift quality, clutch timing, and overall performance. Our 10R80 Transmission Bypass Filter Kit adds a higher level of fine-fluid filtration beyond the factory system by continuously routing a controlled portion of transmission fluid through a dedicated bypass filter, helping reduce the fine abrasive contaminants that can circulate through the valve body, solenoids, and clutch-control circuits. For Ford F-150 owners who want more than standard maintenance, this kit is designed to support cleaner hydraulic operation, more consistent transmission performance, and long-term component protection in a modern high-heat 10-speed transmission.
Parts Included In This Kit
- 1 EXTREME1 filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
- 1 EXTREME1 filter element (EX1ME) with o-rings (GX1/2)
- 2 In/Out fittings (AN06-04MS90)
- 1 Mounting bracket with hardware (ZBRCK)

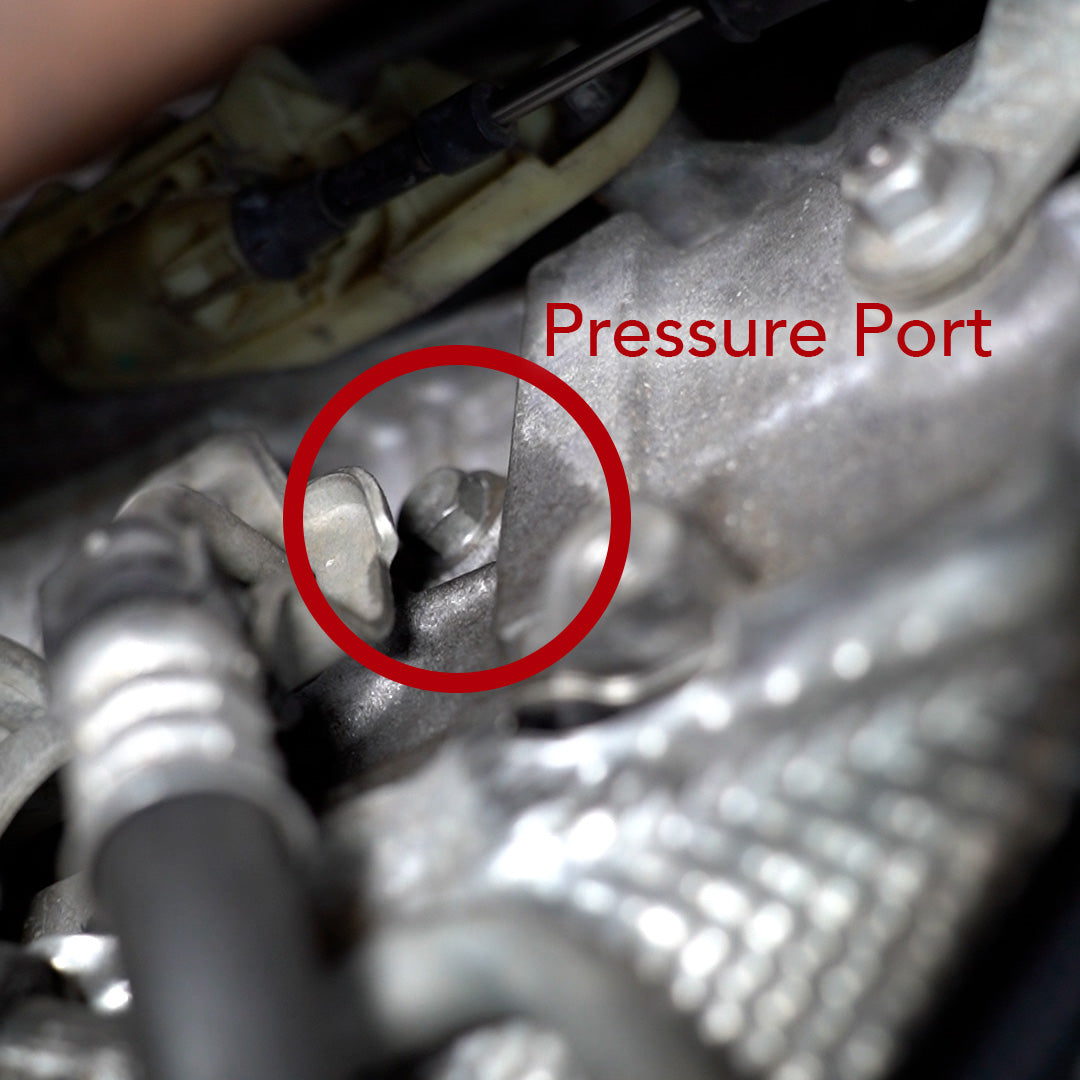

- 1 Pressure port fitting (AN06-10mmx1.0) + (AN06-06FJ90)
- 1 1/4 Orifice (1/4 npt restrictor with 1mm port installed on the housing “IN” port Restricts 120 psi to 1.25 gpm)

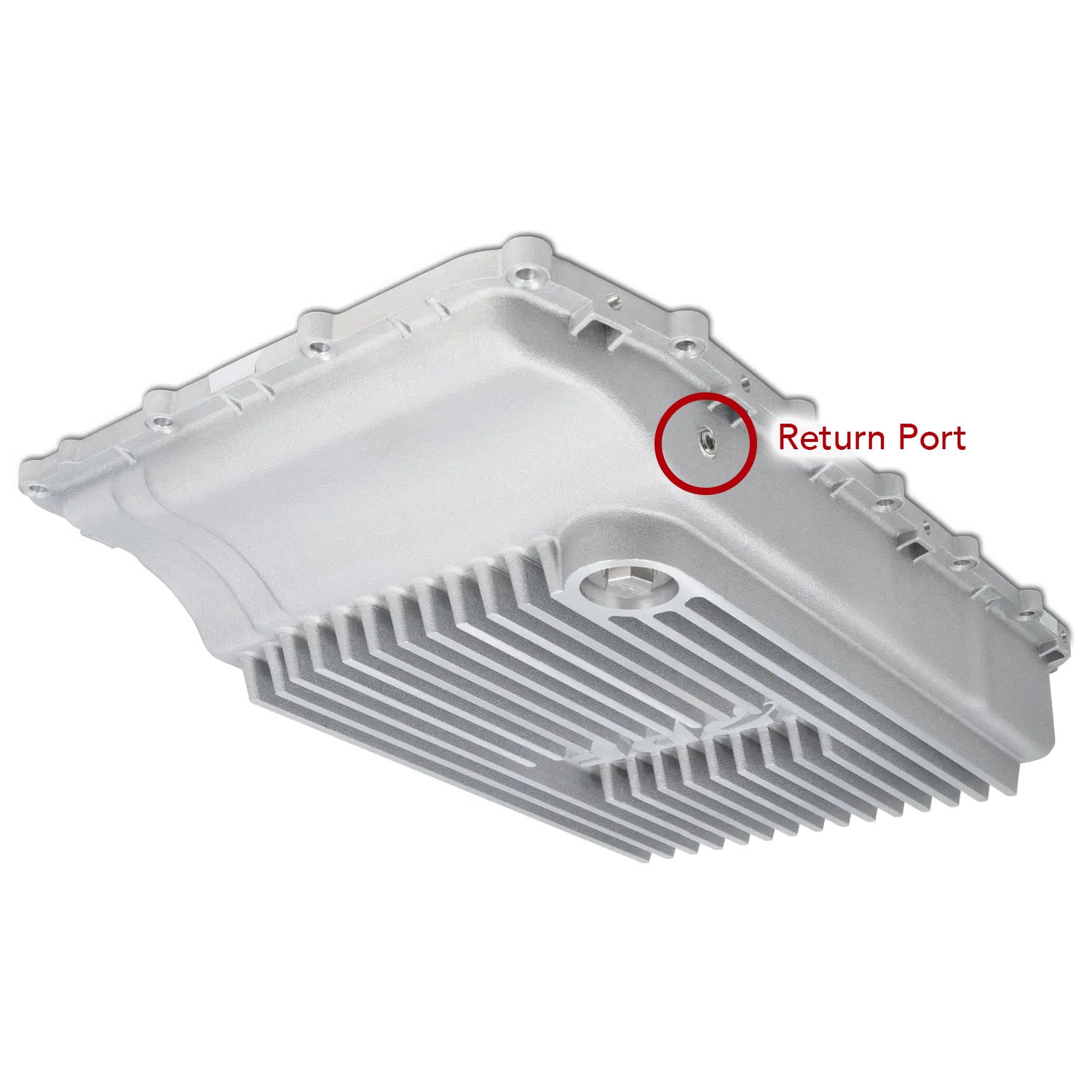

Fluid Return
• Aftermarket PPE Transmission Pan Return *Purchase Separately
Compatible with the PPE Transmission Pan Part #328053210
- 1 Return fitting (AN06-02MS90)
- 10ft hose to be cut to your preference (LW06BK)
Compatible Vehicle Applications
This kit is intended for select Ford and Lincoln applications equipped with the 10R80 10-speed automatic transmission. Ford introduced the 10R80 in certain F-150 applications for 2017, expanded its use across additional F-150 configurations for 2018, and also used the 10R80 in the 2018 Expedition and 2018 Lincoln Navigator. Because transmission application, pan configuration, engine package, drivetrain, and installation space can vary by vehicle and model year, transmission type and application details should always be verified before ordering.
- 2017 Ford F-150 – verify 10R80 transmission before ordering
- 2018–2020 Ford F-150 – verify 10R80 transmission before ordering
- 2021+ Ford F-150 – verify transmission/application details before ordering
- 2018+ Ford Expedition – verify 10R80 transmission and installation details before ordering
- 2018+ Lincoln Navigator – verify transmission/application details and available installation space before ordering
- Ford 5.0L V8 Gas
- Ford 3.5L Ecoboost
Transmission identification should be confirmed using the vehicle build information, VIN-based documentation, window sticker, or Ford/Lincoln build sheet before purchase.
Important Compatibility Notes
- This kit is only for vehicles equipped with the Ford 10R80 transmission.
- Not all 2017+ Ford F-150 trucks use the same transmission, so fitment must be verified before purchase.
- Model year, engine, drive-train, and factory configuration can affect transmission application and installation layout.
- Installer is responsible for confirming transmission identification and available mounting / routing space before installation.
Questions or Need Help?
Call (801) 901-0667
Shipping, Returns & Refund Policy
Shipping Policy
U.S. Shipping
We may occasionally use a shipping carrier different from the one selected at checkout to improve delivery speed, protect fragile items, or reduce overall shipping and handling costs, including packaging and processing.
International Shipping
International shipping charges are calculated at checkout and do not include customs duties, taxes, brokerage fees, or tariffs imposed by your country upon import. These fees are not controlled by Insane Diesel and vary by location and local regulations.
Customers are solely responsible for all import-related charges. We strongly recommend contacting your local customs office or postal service in advance to understand applicable fees before placing an order.
Canada: Estimated duties and taxes may be reviewed at https://www.cbsa-asfc.gc.ca/travel-voyage/dte-acl/est-cal-eng.html
Return & Refund Policy
General Return Policy
Due to the nature of aftermarket automotive components, returns are not accepted for buyer’s remorse, incorrect ordering, or compatibility issues. Customers are responsible for verifying vehicle compatibility prior to purchase. We encourage reviewing installation guides and confirming pressure and return port locations before ordering.
Products that have been installed, used, modified, contaminated with oil or fluids, or show signs of installation are not eligible for return or refund, except where required by law.
Any return request must be approved in advance. Returns sent without authorization may be refused.
Damaged, Defective or Missing Items
All products are inspected prior to shipment. If your order arrives damaged or defective, you must notify us within 7 business days of delivery and provide clear photos of the damage and packaging.
Only unused items in original condition are eligible for replacement or refund. Upon inspection and confirmation, you may choose between a replacement or a full refund.
Missing components must be reported within 15 days of the delivery date. Each order is packed individually to help ensure all components are included and to maintain quality control. A packing slip/manifest is included with every shipment; please review it upon delivery to verify that all components were received.
Approved Returns & Refunds
In rare cases where a return is approved (outside of damage on arrival), requests must be made within 30 days of delivery.
Approved refunds will be issued minus:
- Return shipping costs
- Original outbound shipping costs (even if free shipping was offered)
- Payment processing fees charged by Shopify (approximately 2.4–2.5% + $0.30)
Refunds are issued to the original payment method after returned items are received and inspected.
Contact Us
If you have questions about shipping, returns, or refunds, please contact us at support@insanediesel.com.
Anodized Finish:
Our housings feature a high-quality anodized finish. Because anodized colors can photograph differently under various lighting conditions, the color shown online may appear slightly different in person. Minor tone, shading, or finish variation can also occur naturally from the anodizing process and is a normal characteristic of this type of premium finish.
Product Images:
Product images, especially kit photos, may show earlier versions of certain components. Some parts have since been updated to newer, improved generations and may appear slightly than images. These are the main components that have changed:
• Oil filler caps no longer come with brass swivel center. Replaced with new generation cap that works with our upgraded swivel fittings.
• Fittings in images may have changed slightly as we rolled out with improved versions for simplified installation.
• Steel or brass fittings in images may have changed to our new black fittings to reduce the need for multiple connection points.
• Some mounting brackets have been updated for easier and more convenient access.
Images will be updated soon. Thank you for your patience!
